Description
Choose Your Screen Size
Match the display to your dashboard space and frame geometry.

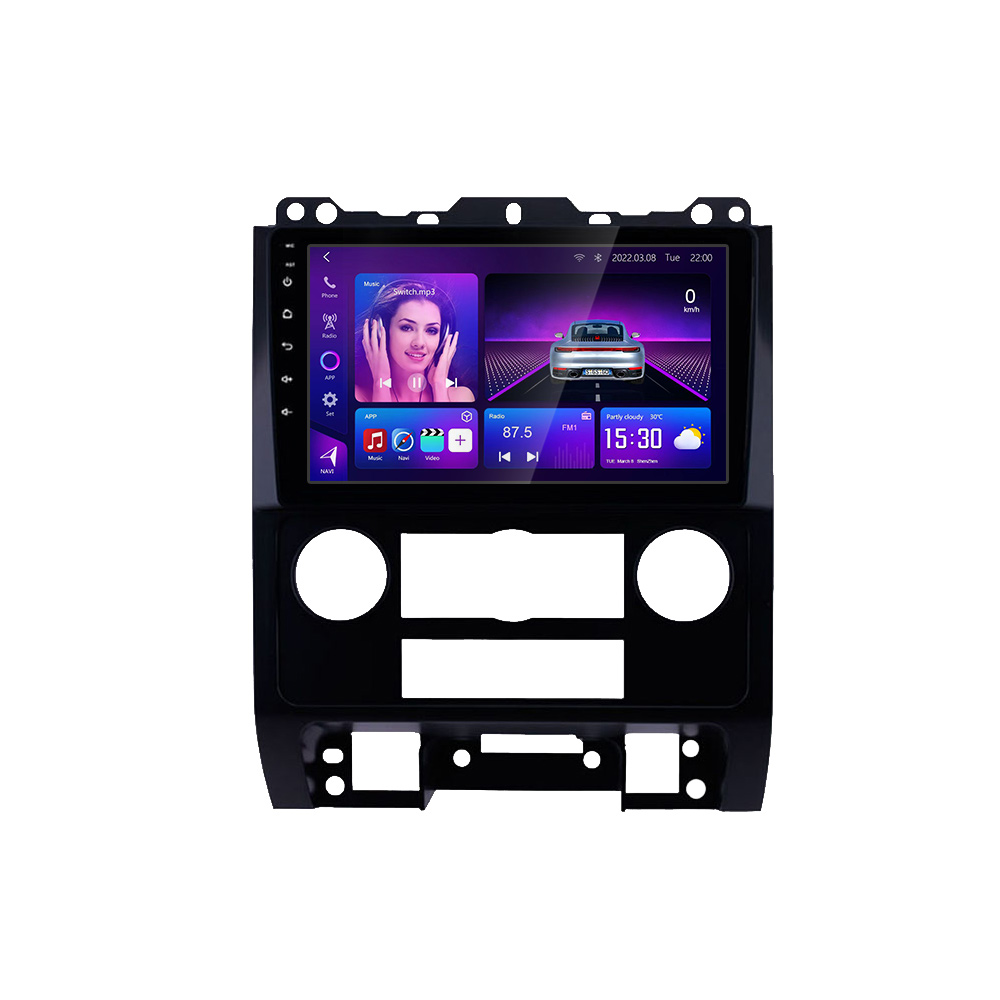

9.0″ / 10.1″ Standard Screen
Perfect 1:1 match with the current frame — no trimming or adjustment needed.
- OEM-style installation; no modification required.
- Mount → connect harness → tighten screws.
- Best choice for guaranteed fit and clean look.
Plug-and-Play Wiring · Global Multi-language UI
Fast OEM-style install and a localized experience for customers worldwide.
True Plug & Play
Vehicle-specific harness, brackets and CAN ready. Mount → connect → power on. No trimming.
Multi-language UI & Voice
Full system menus and voice assistant for 40+ languages so users feel at home on day one.
Language pack is preinstalled; regional keyboards and TTS included.
Head Unit Specifications
TS100 / TS18 / 7862S (TS10) / N70 (TS20) — professional comparison. Mobile shows key specs with expandable full details.
Head Unit Specifications
T100 / TS18 / 7862S (TS10) / N70 (TS20) — professional comparison.
Installation Plan
Use this plan to match each display size to your universal frame. 9.0″/10.1″ aligns 1:1 with the current frame for an OEM-style fit. 11.8″ gives a wider 2K view and usually fits; some frames may need 1–2 mm of side clearance. 13.1″ is the largest 2K screen and needs a wide, open frame — please confirm inner width before purchase.
9.0″ / 10.1″ — 100% Fit
Direct mount · No trimming · Plug & Play wiring
11.8″ 2K — ~70% Fit
Usually fits; check lateral clearance (±1–2 mm)
13.1″ 2K — Fit Check
Largest view; verify frame width & mounting span before ordering

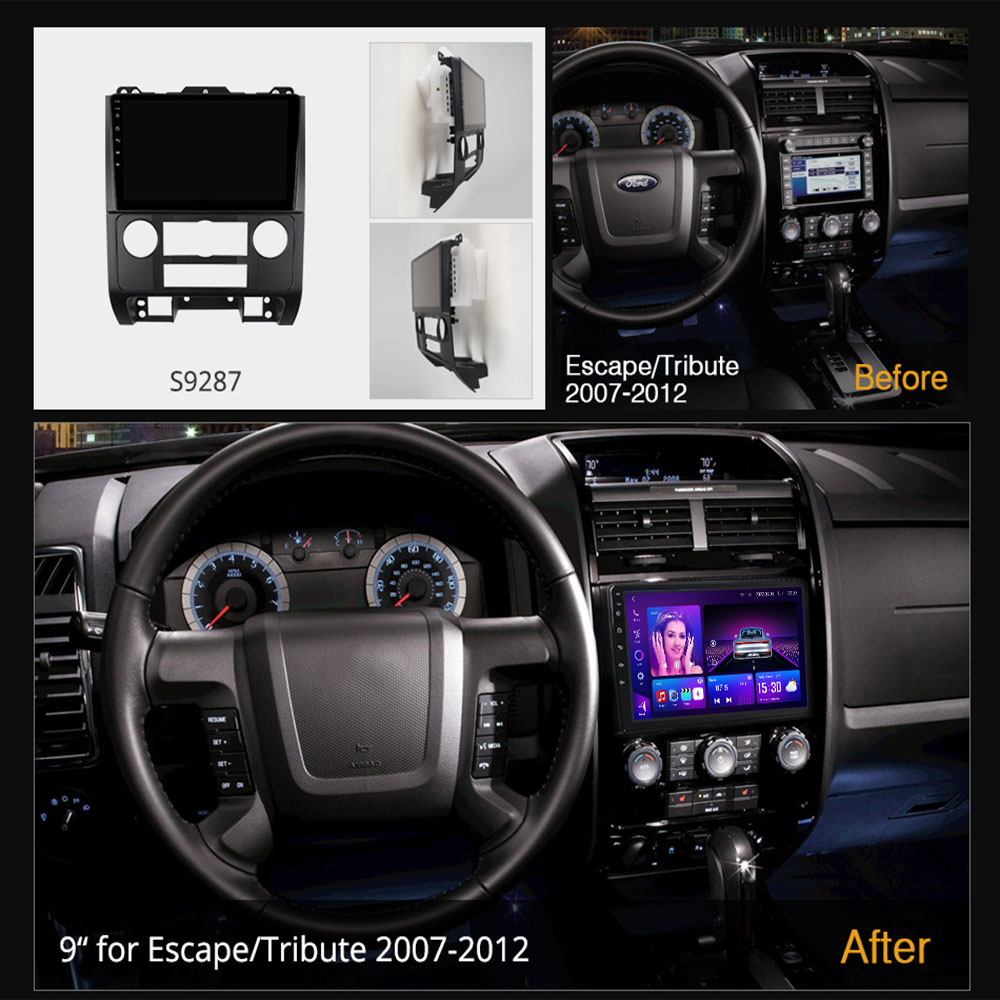

9”/10.1” Mounting Preview (Demo)
This is a standard installation method. The screen size depends on your vehicle’s frame opening—either 9” or 10.1”. We will automatically match the correct screen and bracket for your model, so there’s no need to worry about compatibility.
11.8”/13.1” Mounting Preview (Demo)
If you’re not sure how this head unit is installed, you can watch the two demonstration videos below.
Installation & Fitment
For 11.8–13.1-inch Android screens, installation typically only requires adding a 9″ or 10″ mounting base to match the factory bezel/frame.
Click any product image below to view full features, supported functions, product photos, and usage videos.

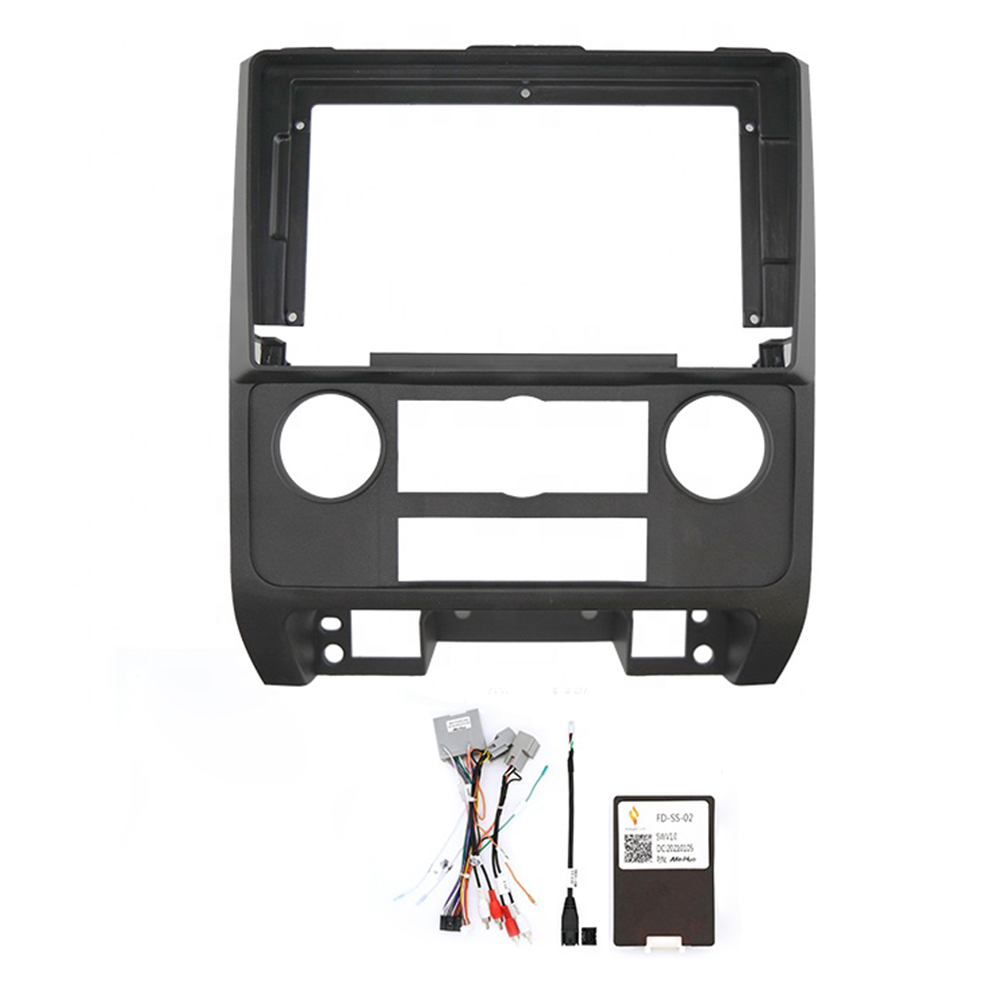

Fitment Tip9" / 10" Base Frames — Adjust Screen Height & Match Different Dash Frames
Choose the proper base size to fine-tune vertical clearance and achieve an OEM-like fit across different vehicles.
No need to choose: the 9" or 10" base depends on your original dash frame size. We will pre-match the correct base before shipping.
What the 9"/10" bases do
- Let the same head unit fit different dashboard frames (openings and depths vary by model).
- Allow you to raise or lower the screen slightly to close top/bottom gaps for a cleaner look.
- Create a neat transition between the frame and the display for an OEM-style finish.
Result: better alignment, reduced visible gap, and a consistent viewing height.
Why two base sizes?
- 9" base: best for compact panels or when the display should sit lower.
- 10" base: adds a transition frame to raise the display slightly and bridge larger trims.
We match it for you using your vehicle info (make / model / year / trim), so you don’t have to worry about picking the size.

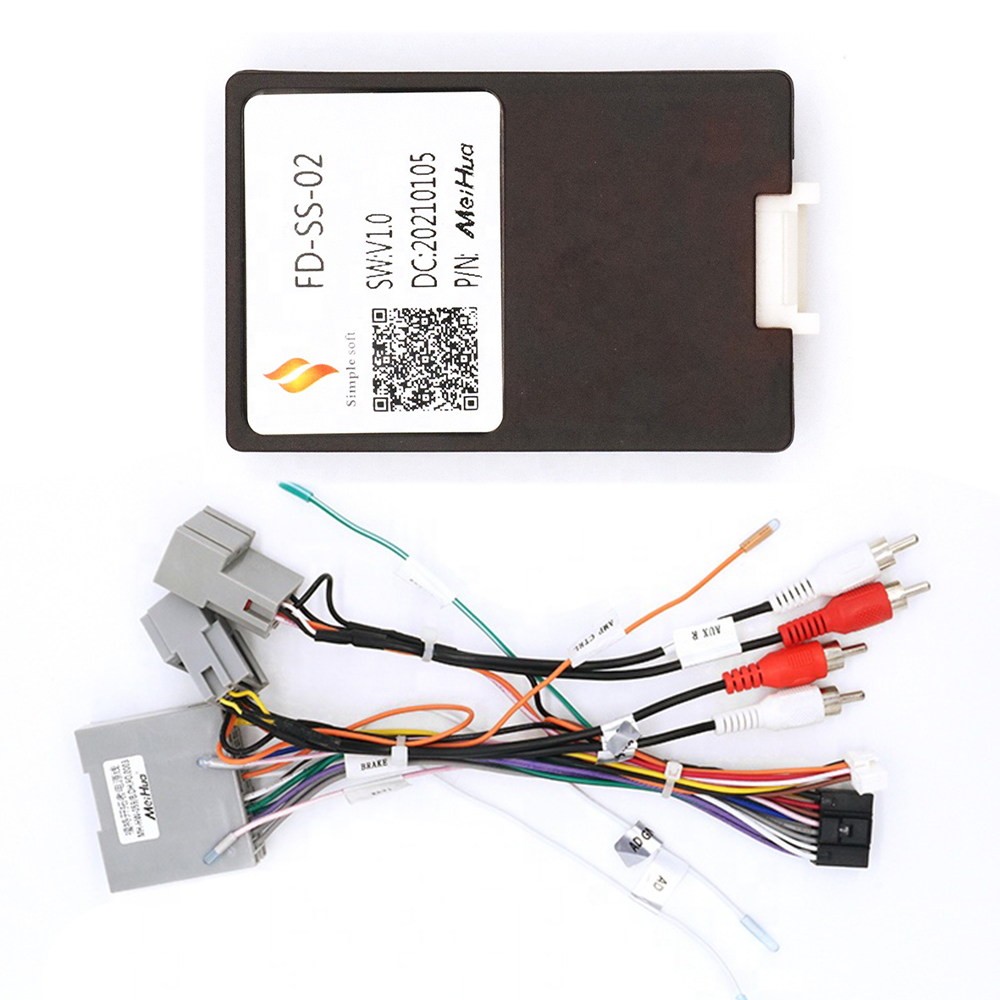

What is CANBUS?
CANBUS (Controller Area Network Bus) is the in-vehicle network used by ECUs to exchange data. With a CANBUS-compatible Android head unit, vehicle signals can be read and shown on the screen, keeping OEM-style functions and interaction.
✅ What CANBUS enables
- Displays vehicle status: doors, A/C info, parking radar/trajectory, fuel/consumption (varies by model).
- Retains or learns steering-wheel buttons and certain OEM key logic.
- Manages ACC, illumination, reverse triggers for auto screen on/off and camera switching.
- Bi-directional with Android unit: adjust A/C or view car info on screen (supported models only).
⛔ What CANBUS does not do
- It doesn’t boost audio power or quality — that’s the amp/speakers’ job.
- It’s not “universal for all cars” — you need the correct protocol & harness.
- It doesn’t rewrite ECU logic — access is limited to the data your vehicle exposes.
| Interfaces & Power | Vehicle-specific harness to OEM plugs; ACC/BATT/GND/reverse/ILL, etc. Fiber/amp adapters on some trims. |
|---|---|
| Protocol Support | Loads the correct CAN protocol per vehicle to read A/C, doors, radar, steering keys, and more (where available). |
| Software Matching | Pre-loaded profiles; if functions differ, we can switch or update the protocol remotely. |
| Install Tip | Connect harness & CAN box → power-on test → then seat and fasten the unit; tidy wiring after verification. |
FAQ
Which functions will my vehicle support?
Functions vary by model and trim. Most vehicles support steering-wheel keys, door/reverse/radar triggers, and basic A/C display. High-trim features (OEM amp, 360 camera, seat heating, etc.) may need extra adapters and are not guaranteed unless specified.
Do I need coding after installation?
Usually no. Select your vehicle profile in the CAN settings; if the behavior is off, contact us to switch or update the protocol.
Will this work without a CANBUS box?
For base trims, the unit can run on standard ACC/BATT wiring, but you will lose OEM integrations (steering keys, A/C data, etc.). We recommend the CANBUS kit for the best OEM-like experience.
*Features depend on the vehicle’s CAN data. Please confirm compatibility with us before ordering.
With vs. Without CANBUS — What’s the Difference?
Use the guide below to judge whether your vehicle needs a CANBUS decoder. Not every car requires CANBUS — it depends on your wiring and OEM features.
If unsure, evaluate using the lists below or contact us to confirm before ordering.
When is a CANBUS Module Required?
Tip: Share make/model/year/trim so we can ship the correct protocol box and harness.
When is a CANBUS Module Not Required?
You can still install via standard wiring; OEM integrations will be limited.
Customizable UI Based on System Version
All models support the original car steering wheel control. The first time you use the version without canbus, you need to learn the key manually. The version with canbus can be used after checking and connecting the canbus.
